Micro-optimizing your Scala code

Posted 2016-05-30
Strategic Scala Style: Practical Type SafetyStrategic Scala Style: Designing Datatypes

"Micro-optimization" is normally used to describe low-level optimizations that do not change the overall structure of the program; this is as opposed to "high level" optimizations (e.g. choosing efficient algorithms, caching things, or parallelizing things) that often require broader changes to your code. Things like removing intermediate objects to minimize memory allocations, or using bit-sets rather than HashSets to speed up lookups, are examples of micro-optimizations.

Micro-optimization has a bad reputation, and is especially uncommon in the Scala programming language where the community is more interested in other things such as proofs, fancy usage of static types, or distributed systems. Often, it is viewed as a maintainability cost with few benefits. This post will demonstrate the potential benefit of micro-optimizations, and how it can be a valuable technique to have in your toolbox of programming techniques.


About the Author: Haoyi is a software engineer, and the author of many open-source Scala tools such as the Ammonite REPL and the Mill Build Tool. If you enjoyed the contents on this blog, you may also enjoy Haoyi's book Hands-on Scala Programming


This post will use the Fansi library as a case-study for what benefits you get from micro-optimizing Scala: swapping out elegant collection transformations for raw while-loops over mutable Arrays, elegant case classs for bit-packed integers. While not changing the asymptotic performance at all, we will show an order-of-magnitude improvement in performance and memory-footprint, and demonstrate the place that these techniques have in a Scala codebase.

Methodology

In order to provide a realistic setting for this post, I'm going to use the Fansi library as an example. This is a new library that was extracted from the codebase of the Ammonite-REPL, and has been in use (in some form) by thousands of people to provide syntax highlighting to their Scala REPL code.

Typically, when you are micro-optimizing a library like Fansi, you spend time with a profiler and see what takes up the most time. For example, we may use JProfiler and pull up a profile that looks like this:


This is the profile for the un-optimized version of Fansi. From this profile, we can see where the time is going when we run our code:

And from there, you figure out ways to make the code run faster. For example, if all our time is spent inside foreach, we may replace that .foreach with a while-loop that runs much faster in Scala. If our time is all spent in a HashMap#get, we may see if we can replace the HashMap with an Array and give our items indexes, which would let us look things up much more quickly. As we make progress, the profile changes, and hopefully the code gets faster each time.

In the case of Fansi, after optimization the above profile turns into:


At which point, all our time is being spent inside this render method, and not in any other helpers or auxiliary code. There are two possibilities:

In this case, it is the latter, and we are done micro-optimizing render.

The Fansi library has already been optimized, and thus I have already gone through this process, identified the various bottlenecks, and optimized them one by one. Thus, this post will take the opposite tack:

By the end, you should have a good sense of what these micro-optimization techniques are, what benefit they provide, and where they could possibly be used in your own code.

The Use Case: Fansi

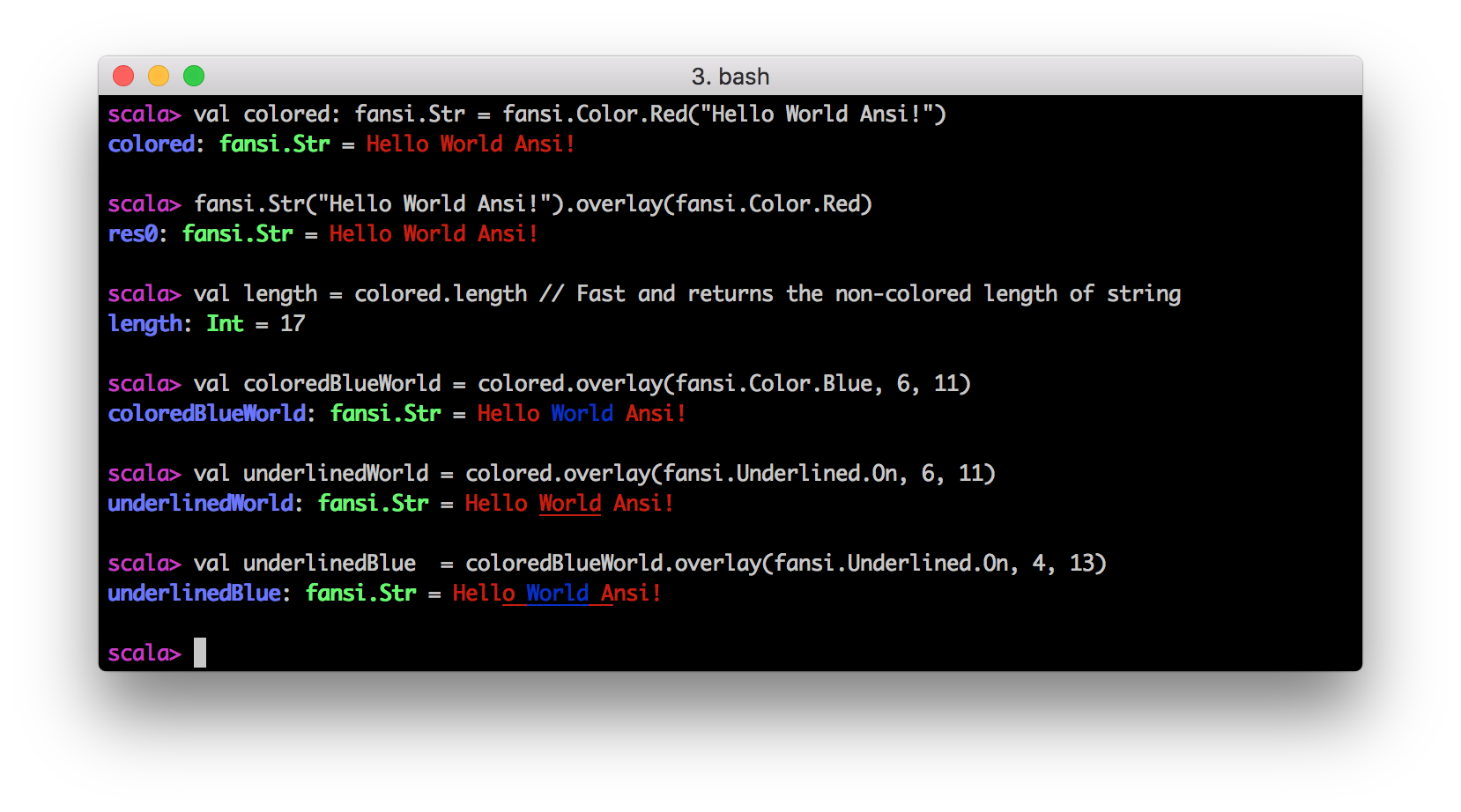

As a real-world use case to demonstrate these techniques, I am going to use the Fansi library. This is a tiny library that I wrote to make it easier to deal with color-coded Ansi strings:


This library exists because dealing with raw java.lang.Strings with Ansi escape codes inside is troublesome, slow and error-prone.

For example, if you want to take an Ansi-colored java.lang.String and find out how many printable characters are in it, the most common way is to use a regex to remove all the Ansi escapes e.g. red being \u001b[31m, underlined \u001b[4m, and remove all of them before being counting the length. This is slow to run, and error prone: if you forget to remove them, you end up with subtle bugs where you're treating a string as if it is 27 characters long on-screen but it's actually only 22 characters long since 5 characters are an Ansi color-code that takes up no space.

Similarly, combining colored strings is error-prone: you can easily mess up existing colors when splicing strings together.


In this case, the mistake was that we used Console.RESET at the end of the snippet we're splicing, without considering the fact that the larger-string may already have a color that we need to re-enable after inserting our snippet. As it turns out, the only way we could know this is to parse the whole outer-string and figure out what the color at the splice-point is: something that is both tedious and slow.

The goal of Fansi is to make such mistakes impossible, and to have such simple operations behave as you'd expect with regard to colors:


The Fansi documentation has a lot more to say about why Fansi exists, but this should have given you a flavor of the problem it's trying to solve

Micro-optimized: How Fansi Works

At its core, Fansi is currently built on three data-structures:

If you want to follow along with the version of the code used for this post, take a look at the source on github:

fansi.Str

case class Str(chars: Array[Char], colors: Array[Str.State]) {
  require(chars.length == colors.length)

  def ++(other: Str): Str
  def splitAt(index: Int): (Str, Str)
  def substring(start: Int = 0, end: Int = length): String
  def length: Int
  def overlay(attrs: Attrs, start: Int, end: Int): Str
  def plainText: java.lang.String
  def render: java.lang.String
}

This is the main representation of a colored string. It stores its characters and their colors in two parallel Arrays. The colors array stores Str.States, which is really just a type-alias for Int. All the color information for each character (along with other decorations like underline, bold, reverse, ...) are all stored bit-packed into those Ints. The .render method serializes this into a single java.lang.String with Ansi escape-codes embedded.

Like java.lang.String, this Str is immutable and the two arrays (along with the constructor) are private and can only be accessed through getters with give you a defensive copy of the innards (not shown in the signature above).

The benefit of this data-structure is that doing operations on the Str is really fast and easy:

Without having to worry about removing Ansi codes first, or having our colors get mixed up as we slice and concatenate them. In general, it behaves exactly like a java.lang.String, just with color.

Furthermore, all these operations are implemented as fast System.arraycopys and Arrays.copyOfRanges:

def splitAt(index: Int) = (
  new Str(
    util.Arrays.copyOfRange(chars, 0, index),
    util.Arrays.copyOfRange(colors, 0, index)
  ),
  new Str(
    util.Arrays.copyOfRange(chars, index, length),
    util.Arrays.copyOfRange(colors, index, length)
  )
)

Which perform much faster than copying the data yourself using a for-loop or Scala collections operations like .drop and .take.

The downside is it does not have any special properties apart from java.lang.String: it is not a Rope, it is not a Persistent Data Structure with fancy structural-sharing, none of that stuff. It shares all the properties of java.lang.String, for better or worse.

fansi.Attrs

sealed trait Attrs{

  /**
    * Apply these [[Attrs]] to the given [[fansi.Str]], making it take effect
    * across the entire length of that string.
    */
  def apply(s: fansi.Str): fansi.Str

  /**
    * Which bits of the [[Str.State]] integer these [[Attrs]] will
    * override when it is applied
    */
  def resetMask: Int

  /**
    * Which bits of the [[Str.State]] integer these [[Attrs]] will
    * set to `1` when it is applied
    */
  def applyMask: Int

  /**
    * Apply the current [[Attrs]] to the [[Str.State]] integer,
    * modifying it to represent the state after all changes have taken
    * effect
    */
  def transform(state: Str.State): State

  /**
    * Combine this [[fansi.Attrs]] with other [[fansi.Attrs]]s, returning one
    * which when applied is equivalent to applying this one and then the `other`
    * one in series.
    */
  def ++(other: fansi.Attrs): fansi.Attrs
}

This is the datatype representing zero or more decorations that can be applied to a Str. This includes

Some of the methods on Attrs are relatively straightforward: you can apply them to fansi.Strs to provide color, you can ++ them to combine their effects. transform takes the decoration-state as a argument and returns the decoration-state after these Attrs have been applied.

Others, like resetMask, applyMask, are more obscure. These will be easier to understand in the context of what exactly goes into the Str.State integer:

fansi.Str.State

Str.State is an alias for Int, defined as

/**
  * An [[fansi.Str]]'s `color`s array is filled with Ints, each representing
  * the ANSI state of one character encoded in its bits. Each [[Attr]] belongs
  * to a [[Category]] that occupies a range of bits within each int:
  *
  * 31... 22 21 20 19 18 17 16 15 14 13 12 11 10  9  8  7  6  5  4  3  2  1  0
  *  |--------|  |-----------------------|  |-----------------------|  |  |  |bold
  *           |                          |                          |  |  |reversed
  *           |                          |                          |  |underlined
  *           |                          |                          |foreground-color
  *           |                          |background-color
  *           |unused
  *
  *
  * The `0000 0000 0000 0000` int corresponds to plain text with no decoration
  *
  */
type State = Int

In short, the different "kinds" of decoration each take up a separate bit-range within the State integer. Bold takes the first bit, reversed the second bit, underlined the third bit. After that, the Foreground Color of the text takes up the next 9 bits (16 base colors + 256 extended-colors), and the Background Color the 9 bits after that. The remaining bits are un-used.

Hence, the resetMask of Attrs tells you which bit-ranges need to be cleared in order for the Attrs to be applied, and the applyMask tells you what those bit-ranges will get set to. For example, fansi.Color.LightGreen has

scala> Integer.toBinaryString(fansi.Color.LightGreen.resetMask)
res8: String = 111111111000

scala> Integer.toBinaryString(fansi.Color.LightGreen.applyMask)
res9: String =      1011000

Thus, to turn the state Int's foreground-color light green, you first zero out 4th to the 12th bit, and then set the 4th, 5th and 7th bits to 1.

The applyMask and resetMask for combinations of Attrs can be computed from those of each individual Attrs object.

That means that applying a set of Attrs to the current state Int is always just three integer instructions:

def transform(state: Str.State) = (state & ~resetMask) | applyMask

And thus much faster than any design using structured data like Set objects and the like. Furthermore, storing all the data relevant to the current state requires only 32 bits, far less than would be required to store a hash-table or tree or whatever data-structures a Set requires.

Micro De-optimization

Now that we've gone through roughly how Fansi works, we will start with the step-by-step de-optimization of the library, removing the existing micro-optimizations one by one and seeing how the performance is affected by each one.

If you want to browse the code, in the state where this exercise kicks off from, take a look at the commit in the Fansi repository:

If you want to follow along with the changes we're making, download the git bundle:

And git clone fansi.bundle on the downloaded file to get your own personal checkout of the Fansi repository, as is used in this post:

aoyi-mbp:demo haoyi$ git clone fansi.bundle
Cloning into 'fansi'...
Receiving objects: 100% (233/233), 1.22 MiB | 0 bytes/s, done.
Resolving deltas: 100% (72/72), done.
Checking connectivity... done.
haoyi-mbp:demo haoyi$ cd fansi

The last 7 commits:

haoyi-mbp:fansi haoyi$ git log --oneline
f9418b5 Bit Packing
d016d88 Arrays instead of Int-Maps
4a74c51 Tries instead of String-Maps
8841540 Speed through While Loops
a64a2fb Local Array Caching
777dfa8 arraycopy and copyOfRange
fd55742 Baseline (Optimized)
...

Correspond to the 7 stages being described in this post:

You can install SBT and run sbt fansiJVM/test to run the test suite and benchmarks yourself. At all points throughout this post, as the various optimizations are removed one by one, the full test suite is passing.

Baseline (Optimized)

To measure baseline performance, before removing any optimizations, we first have to benchmark a few basic operations. For the purposes of this post, we'll be using really simplistic microbenchmarks:

val start = System.currentTimeMillis()
var count = 0
while(System.currentTimeMillis() < start + 5000){
  count += 1
  ...
}
val end = System.currentTimeMillis()
count

This isn't as accurate as a real benchmarking framework - but it will do for now. The changes we'll be seeing are large enough that they'll be obvious despite the noise in the results, but if you want to be fancy you could use JMH or similar to get more precise or reliable benchmarks.

And for this we'll benchmark a few basic operations:

All these will be operating on the following sample input:

val input = s"+++$R---$G***$B///" * 1000

Which is just a generic 20,000 character input with cycling red/green/blue colors.

The baseline level of performance is approximately:

Baseline
(Optimized)
Parsing 29,267
Rendering 35,001
Concat 249,353
Splitting 539,879
Substring 2,077,567
Overlay 630,863

Where the numbers being shown are the numbers of iterations completed in the 5 second benchmark. If you want to try it on your own hardware, check out the code from Github and run fansiJVM/test yourself.

These numbers are expected to vary, especially with the simplistic micro-benchmarking technique that we're doing, but even so the change in performance due to our changes should be significant enough to easily see despite the noise in our measurement.

arraycopy and copyOfRange

The first step of making this "idiomatic" or "typical" Scala is to replace all our usage of System.arraycopy and java.util.Arrays.* with the corresponding RichArray operations. There are a number of usages:

The diff to replace them is:

haoyi-mbp:fansi haoyi$ git --no-pager diff
diff --git a/fansi/shared/src/main/scala/fansi/Fansi.scala b/fansi/shared/src/main/scala/fansi/Fansi.scala
index fa5fd8d..ff29499 100644
--- a/fansi/shared/src/main/scala/fansi/Fansi.scala
+++ b/fansi/shared/src/main/scala/fansi/Fansi.scala
@@ -33,14 +33,7 @@ case class Str private(private val chars: Array[Char], private val colors: Array
     * avoiding any interference between them
     */
   def ++(other: Str) = {
-    val chars2 = new Array[Char](length + other.length)
-    val colors2 = new Array[Str.State](length + other.length)
-    System.arraycopy(chars, 0, chars2, 0, length)
-    System.arraycopy(other.chars, 0, chars2, length, other.length)
-    System.arraycopy(colors, 0, colors2, 0, length)
-    System.arraycopy(other.colors, 0, colors2, length, other.length)
-
-    Str(chars2, colors2)
+    Str(chars ++ other.chars, colors ++ other.colors)
   }

   /**
@@ -51,14 +44,8 @@ case class Str private(private val chars: Array[Char], private val colors: Array
     *              you want to use to split it.
     */
   def splitAt(index: Int) = (
-    new Str(
-      util.Arrays.copyOfRange(chars, 0, index),
-      util.Arrays.copyOfRange(colors, 0, index)
-    ),
-    new Str(
-      util.Arrays.copyOfRange(chars, index, length),
-      util.Arrays.copyOfRange(colors, index, length)
-    )
+    new Str(chars.take(index), colors.take(index)),
+    new Str(chars.drop(index), colors.drop(index))
   )

   /**
@@ -73,10 +60,7 @@ case class Str private(private val chars: Array[Char], private val colors: Array
     if (end < 0 || end >= length || end < start) throw new IllegalArgumentException(
       s"substring end parameter [$end] must be between start $start and $length"
     )
-    new Str(
-      util.Arrays.copyOfRange(chars, start, end),
-      util.Arrays.copyOfRange(colors, start, end)
-    )
+    new Str(chars.slice(start, end), colors.slice(start, end))
   }


@@ -291,10 +275,7 @@ object Str{
       }
     }

-    Str(
-      util.Arrays.copyOfRange(chars, 0, destIndex),
-      util.Arrays.copyOfRange(colors, 0, destIndex)
-    )
+    Str(chars.take(destIndex), colors.take(destIndex))
   }

   /**

This is a relatively straightforward change; it makes the code considerably shorter, and is probably what most Scala programmers would do if they were implementing this themselves. After all, it isn't uncommmon for people to treat Array[T]s as normal Scala collections using the extension methods in RichArray!

This doesn't quite make all the tests pass - the out-of-bounds behavior changes since .take and .drop and .slice are more forgiving than their java.util counterparts. To pass we have to aggressively throw out-of-bounds exceptions ourselves:

haoyi-mbp:fansi haoyi$ git diff
diff --git a/fansi/shared/src/main/scala/fansi/Fansi.scala b/fansi/shared/src/main/scala/fansi/Fansi.scala
index ff29499..f41ec41 100644
--- a/fansi/shared/src/main/scala/fansi/Fansi.scala
+++ b/fansi/shared/src/main/scala/fansi/Fansi.scala
@@ -43,10 +43,16 @@ case class Str private(private val chars: Array[Char], private val colors: Array
     * @param index the plain-text index of the point within the [[fansi.Str]]
     *              you want to use to split it.
     */
-  def splitAt(index: Int) = (
-    new Str(chars.take(index), colors.take(index)),
-    new Str(chars.drop(index), colors.drop(index))
-  )
+  def splitAt(index: Int) = {
+    if (index < 0 || index > chars.length){
+      throw new IllegalArgumentException("lol")
+    }
+
+    (
+      new Str(chars.take(index), colors.take(index)),
+      new Str(chars.drop(index), colors.drop(index))
+    )
+  }

   /**
     * Returns an [[fansi.Str]] which is a substring of this string,

And with this, all tests pass.

It turns out that this works, and all the test cases pass, but at a cost of some performance:

Baseline No arraycopy
(Optimized) and copyOfRange
Parsing 29,267 15,977
Rendering 35,001 32,678
Concat 249,353 227,241
Splitting 539,879 46,305
Substring 2,077,567 157,834
Overlay 630,863 837,962

There's some noise in this measure, as you'd expect: Rendering and Concat has seemed to have gotten faster. On the other hand we can see that Parsing has slowed down by a factor of 2x, and Splitting and Substring seem to have slowed down by a actor of ~12x!

That's a huge slowdown for using .slice and .take and .drop instead of Arrays.copyOfRange. Equivalently, it's a huge 12x speedup for using Arrays.copyOfRange instead of .slice, .take and .drop! If you find yourself using Arrays for performance reasons, .copyOfRange is definitely something that's worth thinking of!

Local Array Caching

The next micro-optimization we can try removing is the local categoryArray variable:

This was introduced to make the while-loop going over the Attr.categories vector faster inside the render method. Iterating over an Array is faster than iterating over a Vector, and this one is in the critical path for the .render method converting our fansi.Strs into java.lang.Strings.

Although allocating this array costs something, it's the Attr.categories vector only has 5 items in it, so allocating a 5-element array should be cheap. For rendering any non-trivial Str the speed up from faster iteration would outweigh the cost of allocating that array.

Removing it:

haoyi-mbp:fansi haoyi$ git diff
diff --git a/fansi/shared/src/main/scala/fansi/Fansi.scala b/fansi/shared/src/main/scala/fansi/Fansi.scala
index f41ec41..7ad45fe 100644
--- a/fansi/shared/src/main/scala/fansi/Fansi.scala
+++ b/fansi/shared/src/main/scala/fansi/Fansi.scala
@@ -113,9 +113,6 @@ case class Str private(private val chars: Array[Char], private val colors: Array

     var currentState: Str.State = 0

-    // Make a local array copy of the immutable Vector, for maximum performance
-    // since the Vector is small and we'll be looking it up over & over & over
-    val categoryArray = Attr.categories.toArray
     /**
       * Emit the ansi escapes necessary to transition
       * between two states, if necessary.
@@ -132,8 +129,8 @@ case class Str private(private val chars: Array[Char], private val colors: Array
       }

       var categoryIndex = 0
-      while(categoryIndex < categoryArray.length){
-        val cat = categoryArray(categoryIndex)
+      while(categoryIndex < Attr.categories.length){
+        val cat = Attr.categories(categoryIndex)
         if ((cat.mask & currentState) != (cat.mask & nextState)){
           val attr = cat.lookupAttr(nextState & cat.mask)

Results in the following benchmarks:

Baseline No arraycopy Arrays to
(Optimized) and copyOfRange Vectors
Parsing 29,267 15,977 11,663
Rendering 35,001 32,678 24,470
Concat 249,353 227,241 242,999
Splitting 539,879 46,305 31,116
Substring 2,077,567 157,834 171,585
Overlay 630,863 837,962 751,720

Again we have a bunch of noise, but it seems that Rendering has gotten a good amount slower: maybe about 25%. Not as large or obvious as the earlier change, but not nothing either.

What's the take-away? Even if you want your public APIs to be immutable and "idiomatic", if you are going to be doing a lot of work with a data-structure it could be worth copying it into a more optimal representation for how you are using it: the speed up on the lot-of-work may well outweight the cost of copying! In this case, I just need to iterate over the Categorys that are available, and there's no faster data-structure to iterate over than a flat Array.

Speed through While Loops

The next micro de-optimization we're going to make is to convert a bunch of our while-loops to for-loops. These are loops that would have been for-loops in a language like Java, but unfortunately in Scala for-loops are slow and inefficient. Nevertheless, people often write for-loops naturally and only optimize it later. Let's convert these back to for-loops:

haoyi-mbp:fansi haoyi$ git diff
haoyi-mbp:fansi haoyi$ git --no-pager diff
diff --git a/fansi/shared/src/main/scala/fansi/Fansi.scala b/fansi/shared/src/main/scala/fansi/Fansi.scala
index 7ad45fe..8ad7a99 100644
--- a/fansi/shared/src/main/scala/fansi/Fansi.scala
+++ b/fansi/shared/src/main/scala/fansi/Fansi.scala
@@ -128,9 +128,7 @@ case class Str private(private val chars: Array[Char], private val colors: Array
         currentState = 0
       }

-      var categoryIndex = 0
-      while(categoryIndex < Attr.categories.length){
-        val cat = Attr.categories(categoryIndex)
+      for(cat <- Attr.categories){
         if ((cat.mask & currentState) != (cat.mask & nextState)){
           val attr = cat.lookupAttr(nextState & cat.mask)

@@ -138,12 +136,10 @@ case class Str private(private val chars: Array[Char], private val colors: Array
             output.append(attr.escapeOpt.get)
           }
         }
-        categoryIndex += 1
       }
     }

-    var i = 0
-    while(i < colors.length){
+    for(i <- colors.indices){
       // Emit ANSI escapes to change colors where necessary
       // fast-path optimization to check for integer equality first before
       // going through the whole `enableDiff` rigmarole
@@ -152,7 +148,6 @@ case class Str private(private val chars: Array[Char], private val colors: Array
         currentState = colors(i)
       }
       output.append(chars(i))
-      i += 1
     }

     // Cap off the left-hand-side of the rendered string with any ansi escape
@@ -192,10 +187,8 @@ case class Str private(private val chars: Array[Char], private val colors: Array
       )

       {
-        var i = start
-        while (i < end) {
+        for(i <- start until end){
           colorsOut(i) = attrs.transform(colorsOut(i))
-          i += 1
         }
       }
     }

And see how that affects performance:

Baseline No arraycopy Arrays to No While
(Optimized) and copyOfRange Vectors Loops
Parsing 29,267 15,977 11,663 12,108
Rendering 35,001 32,678 24,470 16,367
Concat 249,353 227,241 242,999 252,083
Splitting 539,879 46,305 31,116 28,684
Substring 2,077,567 157,834 171,585 159,858
Overlay 630,863 837,962 751,720 782,994

It turns out, most of the while-loops we converted were in the .render method, and we can see our Rendering benchmark slowing down by 1.5x. The only other while loop is in .overlayAll which, although used in .overlay, doesn't seem to affect the benchmarks much at all

Note we did not change the while loop in the Str.apply method we use to parse the fansi.Strs out of java.lang.Strings:

def apply(raw: CharSequence, strict: Boolean = false): fansi.Str = {
  // Pre-allocate some arrays for us to fill up. They will probably be
  // too big if the input has any ansi codes at all but that's ok, we'll
  // trim them later.
  val chars = new Array[Char](raw.length)
  val colors = new Array[Int](raw.length)

  var currentColor = 0
  var sourceIndex = 0
  var destIndex = 0
  val length = raw.length
  while(sourceIndex < length){
    val char = raw.charAt(sourceIndex)
    ...
  }
  ...
}

This while-loop skips forward by varying numbers of characters each iteration, and cannot be changed into a trivial for-loop like the others.

If you find the bottle-neck your program involves fancy Scala collections methods like .map or .foreach on arrays, it's worth trying to re-write it in a while-loop to see if it gets any faster! Although it's a bit tedious and ugly, it's a relatively straightforward conversion to do and shouldn't take too long to measure if it had any effect.

Tries instead of String-Maps

One optimization that is present in Fansi.scala is the character-trie at the bottom of the file, Trie[T]:

/**
  * An string trie for quickly looking up values of type [[T]]
  * using string-keys. Used to speed up
  */
private[this] final class Trie[T](strings: Seq[(String, T)]){
  ...
}

This is used to make prefix-matching of the various Ansi escape codes much faster: matching can be done in O(number-of-characters), regardless of how many different patterns need to be matched, and is done in a single iteration over the characters without needing to do any hashing or string-comparisons.

This is a custom-written trie. Although it only took about 50 characters to implement, it isn't something that a typical Scala programmer would reach for out of the box. Typically, we would reach for a Map[String, T] first. It's relatively straightforward to convert the new Trie construction into a .toMap call:

haoyi-mbp:fansi haoyi$ git diff
diff --git a/fansi/shared/src/main/scala/fansi/Fansi.scala b/fansi/shared/src/main/scala/fansi/Fansi.scala
index 8ad7a99..e773380 100644
--- a/fansi/shared/src/main/scala/fansi/Fansi.scala
+++ b/fansi/shared/src/main/scala/fansi/Fansi.scala
@@ -223,6 +223,8 @@ object Str{
     */
   implicit def implicitApply(raw: CharSequence): fansi.Str = apply(raw)

+  val ansiRegex = "\u001b\\[[0-9]+m".r.pattern
+
   /**
     * Creates an [[fansi.Str]] from a non-fansi `java.lang.String` or other
     * `CharSequence`.
@@ -245,13 +247,17 @@ object Str{
     var sourceIndex = 0
     var destIndex = 0
     val length = raw.length
+
     while(sourceIndex < length){
       val char = raw.charAt(sourceIndex)
       if (char == '\u001b' || char == '\u009b') {
-        ParseMap.query(raw, sourceIndex) match{
-          case Some(tuple) =>
-            currentColor = tuple._2.transform(currentColor)
-            sourceIndex += tuple._1
+
+        val m = ansiRegex.matcher(raw)
+        val snippet = if (m.find(sourceIndex)) Some(m.group()) else None
+        snippet.flatMap(ParseMap.get) match{
+          case Some(attr) =>
+            currentColor = attr.transform(currentColor)
+            sourceIndex += snippet.get.length
           case None =>
             if (strict) {
               // If we found the start of an escape code that was missed by our
@@ -293,7 +299,7 @@ object Str{
       color <- cat.all
       str <- color.escapeOpt
     } yield (str, color)
-    new Trie(pairs :+ (Console.RESET -> Attr.Reset))
+    (pairs :+ (Attr.Reset.escapeOpt.get, Attr.Reset)).toMap
   }
 }

The only slightly-tricky thing is that a Map[String, Attr] does not let you easily check for prefix-matches. Thus we have a choice of either

In this case we did the second option, and here's how the numbers look:

Baseline No arraycopy Arrays to No While No
(Optimized) and copyOfRange Vectors Loops Trie
Parsing 29,267 15,977 11,663 12,108 4,963
Rendering 35,001 32,678 24,470 16,367 11,455
Concat 249,353 227,241 242,999 252,083 225,972
Splitting 539,879 46,305 31,116 28,684 30,168
Substring 2,077,567 157,834 171,585 159,858 158,109
Overlay 630,863 837,962 751,720 782,994 676,621

Again, there is a great deal of noise in these results. Nevertheless, one thing is clear: the Parsing performance has dropped by half, again! It's now down to under a quarter of what it started off as, and even the significant noise in the measurements can't hide that.

Tries are great data-structures. If you're dealing with a lot of Map[String, T]s, and find that looking up things in those maps is the bottleneck in your code, swapping in a Trie could give a great performance boost.

Arrays instead of Int-Maps

One bit of unusual code is the val lookupAttrTable: Array[Attr] that's part of the Category class

def lookupAttr(applyState: Int) = lookupAttrTable(applyState >> offset)
// Allows fast lookup of categories based on the desired applyState
private[this] lazy val lookupAttrTable = {
  val arr = new Array[Attr](1 << width)
  for(attr <- all){
    arr(attr.applyMask >> offset) = attr
  }
  arr
}

The purpose of this method is to make it quick to look up an Attr based on its .applyMask. The applyMask is a unique ID for each Attr, and no two Attrs will share it. However the .applyMask itself is a bit-mask that could correspond to a relatively large integer, e.g. for setting the background color via Back.LightGreen

scala> Integer.toBinaryString(fansi.Back.LightGreen.applyMask)
res1: String = 1011000000000000

scala> fansi.Back.LightGreen.applyMask
res2: Int = 45056

Nevertheless, much of the size of that integer is due to the offset of the category to stop it from overlapping with others; in this case, for example, the applyMask of Back.LightGreen can only really start after the twelfth bit (the area which the resetMask covers)

scala> Integer.toBinaryString(fansi.Back.LightGreen.resetMask)
res3: String = 111111111000000000000

Hence, by looking up the Attr via it's applyMask >> offset, we are able to keep the lookup to a relatively integer, in the hundreds. By pre-filling the lookupAttrTable array, we can make the lookup really fast, without wasting any space storing huge, empty Arrays. And Array lookup is much, much faster than if we had used a Map.

However, a typical Scala programmer taking a first cut at this problem won't do all this stuff; they'll simply take the .applyMask and dump it in a Map[Int, Attr] and be done with it! It turns out that this is far less code:

haoyi-mbp:fansi haoyi$ git diff
diff --git a/fansi/shared/src/main/scala/fansi/Fansi.scala b/fansi/shared/src/main/scala/fansi/Fansi.scala
index 8ad7a99..55e7671 100644
--- a/fansi/shared/src/main/scala/fansi/Fansi.scala
+++ b/fansi/shared/src/main/scala/fansi/Fansi.scala
@@ -465,15 +465,7 @@ sealed abstract class Category(val offset: Int, val width: Int)(implicit catName
   def mask = ((1 << width) - 1) << offset
   val all: Seq[Attr]

-  def lookupAttr(applyState: Int) = lookupAttrTable(applyState >> offset)
-  // Allows fast lookup of categories based on the desired applyState
-  private[this] lazy val lookupAttrTable = {
-    val arr = new Array[Attr](1 << width)
-    for(attr <- all){
-      arr(attr.applyMask >> offset) = attr
-    }
-    arr
-  }
+  lazy val lookupAttr: Map[Int, Attr] = all.map{attr => attr.applyMask -> attr}.toMap
   def makeAttr(s: String, applyValue: Int)(implicit name: sourcecode.Name) = {
     new EscapeAttr(s, mask, applyValue << offset)(catName.value + "." + name.value)
   }

But you end up paying a performance cost for it:

Baseline No arraycopy Arrays to No While No No Fast
(Optimized) and copyOfRange Vectors Loops Trie Attr Lookup
Parsing 29,267 15,977 11,663 12,108 4,963 5,343
Rendering 35,001 32,678 24,470 16,367 11,455 10,971
Concat 249,353 227,241 242,999 252,083 225,972 229,399
Splitting 539,879 46,305 31,116 28,684 30,168 34,835
Substring 2,077,567 157,834 171,585 159,858 158,109 169,332
Overlay 630,863 837,962 751,720 782,994 676,621 624,217

Among the noise, it seems Overlay has gotten about 10% slower as a result of this change. Not a huge jump, but not insignificant! In general, if you find yourself dealing with Map[Int, T]s, if you can figure out a way to keep the Ints you're looking up in the map small then using an Array would be a lot faster.

Bit Packing

The last, and perhaps most significant micro-optimization that we are going to remove, is the use of bit-packed Ints to implement the Str.State type. A more "idiomatic" implementation would be using some kind of case class with different fields representing the different categories of attributes that can take effect, or perhaps a Map[Category, Attr] to ensure that we only ever have one Attr in place for each Category. Perhaps replacing:


/**
  * An [[fansi.Str]]'s `color`s array is filled with Ints, each representing
  * the ANSI state of one character encoded in its bits. Each [[Attr]] belongs
  * to a [[Category]] that occupies a range of bits within each int:
  *
  * 31... 22 21 20 19 18 17 16 15 14 13 12 11 10  9  8  7  6  5  4  3  2  1  0
  *  |--------|  |-----------------------|  |-----------------------|  |  |  |bold
  *           |                          |                          |  |  |reversed
  *           |                          |                          |  |underlined
  *           |                          |                          |foreground-color
  *           |                          |background-color
  *           |unused
  *
  *
  * The `0000 0000 0000 0000` int corresponds to plain text with no decoration
  *
  */
type State = Int

With something like

case class State(mapping: Map[Category, Attr] = Map(
  Bold -> Bold.Off,
  Reversed -> Reversed.Off,
  Underlined -> Underlined.Off,
  Color -> Color.Reset,
  Back -> Back.Reset
))

That is to say, rather than trying to fit everything into bits, storing it as a proper map of Category to Attr, ensuring that we only have one Attr for any given category.

The actual change to implement this idea is somewhat long - a lot of code in Fansi touches the Str.State in various ways and needs to be tweaked! - but it's not fundamentally difficult.

Nevertheless, it is a long diff, so feel free to skip over it to continue reading if it doesn't interest you:

haoyi-mbp:fansi haoyi$ git --no-pager diff f132a0b9738599d4024e748ae7bd452e6fd80617
diff --git a/fansi/shared/src/main/scala/fansi/Fansi.scala b/fansi/shared/src/main/scala/fansi/Fansi.scala
index f3bad04..bf5b155 100644
--- a/fansi/shared/src/main/scala/fansi/Fansi.scala
+++ b/fansi/shared/src/main/scala/fansi/Fansi.scala
@@ -22,10 +22,10 @@ import scala.collection.mutable
   */
 case class Str private(private val chars: Array[Char], private val colors: Array[Str.State]) {
   require(chars.length == colors.length)
-  override def hashCode() = util.Arrays.hashCode(chars) + util.Arrays.hashCode(colors)
+  override def hashCode() = util.Arrays.hashCode(chars) + colors.map(_.hashCode()).sum
   override def equals(other: Any) = other match{
     case o: fansi.Str =>
-      util.Arrays.equals(chars, o.chars) && util.Arrays.equals(colors, o.colors)
+      util.Arrays.equals(chars, o.chars) && colors.toSeq == o.colors.toSeq
     case _ => false
   }
   /**
@@ -111,27 +111,26 @@ case class Str private(private val chars: Array[Char], private val colors: Array
     val output = new StringBuilder(chars.length + colors.length * 5)


-    var currentState: Str.State = 0
+    var currentState: Str.State = Str.State()

     /**
       * Emit the ansi escapes necessary to transition
       * between two states, if necessary.
       */
-    def emitDiff(nextState: Int) = if (currentState != nextState){
-      val hardOffMask = Bold.mask
+    def emitDiff(nextState: Str.State) = if (currentState != nextState){
+
       // Any of these transitions from 1 to 0 within the hardOffMask
       // categories cannot be done with a single ansi escape, and need
       // you to emit a RESET followed by re-building whatever ansi state
       // you previous had from scratch
-      if ((currentState & ~nextState & hardOffMask) != 0){
+      if (nextState.mapping(Bold) == Bold.Off && currentState.mapping(Bold) == Bold.On){
         output.append(Console.RESET)
-        currentState = 0
+        currentState = Str.State()
       }

       for(cat <- Attr.categories){
-        if ((cat.mask & currentState) != (cat.mask & nextState)){
-          val attr = cat.lookupAttr(nextState & cat.mask)
-
+        val attr = nextState.mapping(cat)
+        if (currentState.mapping(cat) != nextState.mapping(cat)){
           if (attr.escapeOpt.isDefined) {
             output.append(attr.escapeOpt.get)
           }
@@ -152,7 +151,7 @@ case class Str private(private val chars: Array[Char], private val colors: Array

     // Cap off the left-hand-side of the rendered string with any ansi escape
     // codes necessary to rest the state to 0
-    emitDiff(0)
+    emitDiff(Str.State())

     output.toString
   }
@@ -198,24 +197,13 @@ case class Str private(private val chars: Array[Char], private val colors: Array

 object Str{

-  /**
-    * An [[fansi.Str]]'s `color`s array is filled with Ints, each representing
-    * the ANSI state of one character encoded in its bits. Each [[Attr]] belongs
-    * to a [[Category]] that occupies a range of bits within each int:
-    *
-    * 31... 22 21 20 19 18 17 16 15 14 13 12 11 10  9  8  7  6  5  4  3  2  1  0
-    *  |--------|  |-----------------------|  |-----------------------|  |  |  |bold
-    *           |                          |                          |  |  |reversed
-    *           |                          |                          |  |underlined
-    *           |                          |                          |foreground-color
-    *           |                          |background-color
-    *           |unused
-    *
-    *
-    * The `0000 0000 0000 0000` int corresponds to plain text with no decoration
-    *
-    */
-  type State = Int
+  case class State(mapping: Map[Category, Attr] = Map(
+    Bold -> Bold.Off,
+    Reversed -> Reversed.Off,
+    Underlined -> Underlined.Off,
+    Color -> Color.Reset,
+    Back -> Back.Reset
+  ))

   /**
     * Make the construction of [[fansi.Str]]s from `String`s and other
@@ -241,9 +229,9 @@ object Str{
     // too big if the input has any ansi codes at all but that's ok, we'll
     // trim them later.
     val chars = new Array[Char](raw.length)
-    val colors = new Array[Int](raw.length)
+    val colors = new Array[Str.State](raw.length)

-    var currentColor = 0
+    var currentColor = Str.State()
     var sourceIndex = 0
     var destIndex = 0
     val length = raw.length
@@ -299,7 +287,7 @@ object Str{
       color <- cat.all
       str <- color.escapeOpt
     } yield (str, color)
-    (pairs :+ (Attr.Reset.escapeOpt.get, Attr.Reset)).toMap
+    (pairs :+ (Console.RESET, Attr.Reset)).toMap
   }
 }

@@ -319,24 +307,21 @@ sealed trait Attrs{
     */
   def apply(s: fansi.Str) = s.overlay(this, 0, s.length)

-  /**
-    * Which bits of the [[Str.State]] integer these [[Attrs]] will
-    * override when it is applied
-    */
-  def resetMask: Int
+  def cats: Set[Category]

-  /**
-    * Which bits of the [[Str.State]] integer these [[Attrs]] will
-    * set to `1` when it is applied
-    */
-  def applyMask: Int
+  def attrs: Seq[Attr]

   /**
     * Apply the current [[Attrs]] to the [[Str.State]] integer,
     * modifying it to represent the state after all changes have taken
     * effect
     */
-  def transform(state: Str.State) = (state & ~resetMask) | applyMask
+  def transform(state: Str.State) = {
+    attrs.foldLeft(state)(
+      (s, attr) => s.copy(mapping = s.mapping.updated(attr.cat, attr))
+    )
+
+  }

   /**
     * Combine this [[fansi.Attrs]] with other [[fansi.Attrs]]s, returning one
@@ -353,8 +338,8 @@ object Attrs{

   def apply(attrs: Attr*): Attrs = {
     var output = List.empty[Attr]
-    var resetMask = 0
-    var applyMask = 0
+    var resetMask = Set.empty[Category]
+    var applyMask = Set.empty[Attr]
     // Walk the list of attributes backwards, and aggregate only those whose
     // `resetMask` is not going to get totally covered by the union of all
     // `resetMask`s that come after it.
@@ -363,20 +348,19 @@ object Attrs{
     // all aggregated `attr`s whose own `applyMask` is not totally covered by
     // the union of all `resetMask`s that come after.
     for(attr <- attrs.reverseIterator){
-      if ((attr.resetMask & ~resetMask) != 0){
-        if ((attr.applyMask & resetMask) == 0) applyMask = applyMask | attr.applyMask
-        resetMask = resetMask | attr.resetMask
+      if (!resetMask.contains(attr.cat)){
+        resetMask = resetMask + attr.cat
         output = attr :: output
       }
     }

+
     if (output.length == 1) output.head
-    else new Multiple(resetMask, applyMask, output.toArray.reverse:_*)
+    else new Multiple(output.reverse:_*)
   }

-  class Multiple private[Attrs] (val resetMask: Int,
-                                 val applyMask: Int,
-                                 val attrs: Attr*) extends Attrs{
+  class Multiple private[Attrs] (val attrs: Attr*) extends Attrs{
+    val cats = attrs.flatMap(_.cats).toSet
     assert(attrs.length != 1)
     override def hashCode() = attrs.hashCode()
     override def equals(other: Any) = (this, other) match{
@@ -409,7 +393,11 @@ object Attrs{
   * http://misc.flogisoft.com/bash/tip_colors_and_formatting
   */
 sealed trait Attr extends Attrs {
+
+  def cat: Category
+  lazy val cats = Set(cat)
   def attrs = Seq(this)
+  def applyValue: Int
   /**
     * escapeOpt the actual ANSI escape sequence corresponding to this Attr
     */
@@ -428,7 +416,8 @@ object Attr{
     * Represents the removal of all ansi text decoration. Doesn't fit into any
     * convenient category, since it applies to them all.
     */
-  val Reset = new EscapeAttr(Console.RESET, Int.MaxValue, 0)
+  val Reset = Color.Reset ++ Back.Reset ++ Bold.Off ++ Reversed.Off ++ Underlined.Off
+

   /**
     * A list of possible categories
@@ -444,8 +433,9 @@ object Attr{
 /**
   * An [[Attr]] represented by an fansi escape sequence
   */
-case class EscapeAttr private[fansi](escape: String, resetMask: Int, applyMask: Int)
+case class EscapeAttr private[fansi](escape: String, cat: Category, applyValue: Int)
                                     (implicit sourceName: sourcecode.Name) extends Attr{
+
   def escapeOpt = Some(escape)
   val name = sourceName.value
   override def toString = escape + name + Console.RESET
@@ -454,7 +444,7 @@ case class EscapeAttr private[fansi](escape: String, resetMask: Int, applyMask:
 /**
   * An [[Attr]] for which no fansi escape sequence exists
   */
-case class ResetAttr private[fansi](resetMask: Int, applyMask: Int)
+case class ResetAttr private[fansi](cat: Category, applyValue: Int)
                                    (implicit sourceName: sourcecode.Name) extends Attr{
   def escapeOpt = None
   val name = sourceName.value
@@ -467,23 +457,23 @@ case class ResetAttr private[fansi](resetMask: Int, applyMask: Int)
   * Represents a set of [[fansi.Attr]]s all occupying the same bit-space
   * in the state `Int`
   */
-sealed abstract class Category(val offset: Int, val width: Int)(implicit catName: sourcecode.Name){
-  def mask = ((1 << width) - 1) << offset
+sealed abstract class Category()(implicit catName: sourcecode.Name){
+
   val all: Seq[Attr]

-  lazy val lookupAttr: Map[Int, Attr] = all.map{attr => attr.applyMask -> attr}.toMap
+
   def makeAttr(s: String, applyValue: Int)(implicit name: sourcecode.Name) = {
-    new EscapeAttr(s, mask, applyValue << offset)(catName.value + "." + name.value)
+    new EscapeAttr(s, this, applyValue)(catName.value + "." + name.value)
   }
   def makeNoneAttr(applyValue: Int)(implicit name: sourcecode.Name) = {
-    new ResetAttr(mask, applyValue << offset)(catName.value + "." + name.value)
+    new ResetAttr(this, applyValue)(catName.value + "." + name.value)
   }
 }

 /**
   * [[Attr]]s to turn text bold/bright or disable it
   */
-object Bold extends Category(offset = 0, width = 1){
+object Bold extends Category(){
   val On  = makeAttr(Console.BOLD, 1)
   val Off = makeNoneAttr(          0)
   val all = Seq(On, Off)
@@ -493,7 +483,7 @@ object Bold extends Category(offset = 0, width = 1){
   * [[Attr]]s to reverse the background/foreground colors of your text,
   * or un-reverse them
   */
-object Reversed extends Category(offset = 1, width = 1){
+object Reversed extends Category(){
   val On  = makeAttr(Console.REVERSED,   1)
   val Off = makeAttr("\u001b[27m",       0)
   val all = Seq(On, Off)
@@ -501,7 +491,7 @@ object Reversed extends Category(offset = 1, width = 1){
 /**
   * [[Attr]]s to enable or disable underlined text
   */
-object Underlined extends Category(offset = 2, width = 1){
+object Underlined extends Category(){
   val On  = makeAttr(Console.UNDERLINED, 1)
   val Off = makeAttr("\u001b[24m",       0)
   val all = Seq(On, Off)
@@ -510,7 +500,7 @@ object Underlined extends Category(offset = 2, width = 1){
 /**
   * [[Attr]]s to set or reset the color of your foreground text
   */
-object Color extends Category(offset = 3, width = 9){
+object Color extends Category(){

   val Reset        = makeAttr("\u001b[39m",     0)
   val Black        = makeAttr(Console.BLACK,    1)
@@ -545,7 +535,7 @@ object Color extends Category(offset = 3, width = 9){
 /**
   * [[Attr]]s to set or reset the color of your background
   */
-object Back extends Category(offset = 12, width = 9){
+object Back extends Category(){

   val Reset        = makeAttr("\u001b[49m",       0)
   val Black        = makeAttr(Console.BLACK_B,    1)
diff --git a/fansi/shared/src/test/scala/fansi/FansiTests.scala b/fansi/shared/src/test/scala/fansi/FansiTests.scala
index b812d6f..3af0ee8 100644
--- a/fansi/shared/src/test/scala/fansi/FansiTests.scala
+++ b/fansi/shared/src/test/scala/fansi/FansiTests.scala
@@ -16,7 +16,7 @@ object FansiTests extends TestSuite{
   val REV = fansi.Reversed.On.escape
   val DREV = fansi.Reversed.Off.escape
   val DCOL = fansi.Color.Reset.escape
-  val RES = fansi.Attr.Reset.escape
+  val RES = Console.RESET
   /**
     * ANSI escape sequence to reset text color
     */
@@ -213,41 +213,6 @@ object FansiTests extends TestSuite{
       }
     }
     'multipleAttrs{
-      'identicalMasksGetCollapsed{
-        val redRed = fansi.Color.Red ++ fansi.Color.Red
-        assert(
-          redRed.resetMask == fansi.Color.Red.resetMask,
-          redRed.applyMask == fansi.Color.Red.applyMask
-        )
-      }
-      'overlappingMasksGetReplaced{
-        val redBlue = fansi.Color.Red ++ fansi.Color.Blue
-        assert(
-          redBlue.resetMask == fansi.Color.Blue.resetMask,
-          redBlue.applyMask == fansi.Color.Blue.applyMask
-        )
-      }
-      'semiOverlappingMasks{
-        val resetRed = fansi.Attr.Reset ++ fansi.Color.Red
-        val redReset = fansi.Color.Red ++ fansi.Attr.Reset
-        assert(
-          resetRed != fansi.Attr.Reset,
-          resetRed != fansi.Color.Red,
-          redReset == fansi.Attr.Reset,
-          redReset != fansi.Color.Red,
-          redReset != resetRed,
-          resetRed.resetMask == fansi.Attr.Reset.resetMask,
-          resetRed.applyMask == fansi.Color.Red.applyMask
-        )
-      }
-      'separateMasksGetCombined{
-        val redBold = fansi.Color.Red ++ fansi.Bold.On
-
-        assert(
-          redBold.resetMask == (fansi.Color.Red.resetMask | fansi.Bold.On.resetMask),
-          redBold.applyMask == (fansi.Color.Red.applyMask | fansi.Bold.On.applyMask)
-        )
-      }
       'applicationWorks{
         val redBlueBold = fansi.Color.Red ++ fansi.Color.Blue ++ fansi.Bold.On
         val colored = redBlueBold("Hello World")

Despite the fact that this is a widespread change, all tests pass after (except the not-applicable ones we deleted)

[info] Tests: 63
[info] Passed: 63
[info] Failed: 0

So we can be confident that despite being implemented totally differently, the externally-visible behavior is exactly the same.

So what does the performance look like?

Baseline No arraycopy Arrays to No While No No Fast No Bit
(Optimized) and copyOfRange Vectors Loops Trie Attr Lookup Packing
Parsing 29,267 15,977 11,663 12,108 4,963 5,343 3,773
Rendering 35,001 32,678 24,470 16,367 11,455 10,971 3,766
Concat 249,353 227,241 242,999 252,083 225,972 229,399 253,105
Splitting 539,879 46,305 31,116 28,684 30,168 34,835 54,804
Substring 2,077,567 157,834 171,585 159,858 158,109 169,332 163,447
Overlay 630,863 837,962 751,720 782,994 676,621 624,217 16,631

Among all the ups and downs, it looks like in doing so we've made Rendering 3x slower, Parsing about 2.5x slower, and Overlay a whooping 40x slower! On the other hand, other benchmarks like Concat, Splitting and Substring seem unaffected.

The huge slowdown to Overlay is not unexpected: after all, we do the most of our heavy lifting regarding Str.State inside .overlay, where we need to apply the modifications to the state of every character our Attrs are being overlayed on. The main cause for the slowdown is likely this change:

   /**
     * Apply the current [[Attrs]] to the [[Str.State]] integer,
     * modifying it to represent the state after all changes have taken
     * effect
     */
-  def transform(state: Str.State) = (state & ~resetMask) | applyMask
+  def transform(state: Str.State) = {
+    attrs.foldLeft(state)(
+      (s, attr) => s.copy(mapping = s.mapping.updated(attr.cat, attr))
+    )
+
+  }

Which replaces three tiny bit-wise operations that perform the state update all at once with a relatively slow .foldLeft and .copy over the attrs

Parsing and Rendering are similar, but have other considerations e.g. the speed of the actual parser and the speed of the output-string-generation as part of the benchmark, while Overlay is almost entirely bottlenecked on the Attrs#transform operations. It's not at all surprising that performing a bunch of Map operations on structured data is 40x slower than performing a few bit-shifts on an Int!

It turns out there's a memory cost too. Unlike all the other changes we made earlier, this one actually changes the representation of the data-structure. Measuring memory usage in Java is somewhat tedious, but any modern Java profiler (e.g. JProfiler) should do it just fine. You can easily define objects and values in the Scala REPL:

scala> val hundredThousand = fansi.Str(s"+++$R---$G***$B///" * 100000)

and ask JProfiler how big they are via it's Biggest Objects tab:


Spending a few minutes running this over and over on a range of string lengths using different kinds of strings, we can quickly see how much memory is being taken up by various data structures:

String Length Case Class Bit Packed Colored Uncolored
(Visible Chars) fansi.Str fansi.Str java.lang.String java.lang.String
12000 chars 456kb 72kb 54kb 24kb
120000 chars 4,560kb 720kb 540kb 240kb
1200000 chars 45,600kb 7,200kb 5,400kb 2,400kb

It turns out that the case class/Map representation of a Str.State takes ~6.3 times as much memory as the bit-packed version! And ~8.5 times as much memory as the colored java.lang.Strings. In comparison, the bit-packed version take only ~1.3 times as much memory as the colored java.lang.Strings. And as expected, the uncolored java.lang.String containing 12000 Chars takes 24kb, since in Java each Char is a UTF-16 character and takes 2 bytes.

Bit-packing is a technique that is often ignored in "high level" languages like Scala, despite having a rich history of usage in C++, C, or Assembly programs. Nevertheless, as this example demonstrates, it can lead to huge improvements in performance and memory-usage in the cases where it can be used. Not only does it take up less memory, but bitwise operations on Ints or Longs are going to be much, much, much faster than any methods you could call on a Set or a Map.

If you are dealing with a Set or Map which is the bottle-neck within your program, it's worth considering whether you can replace it with a BitSet or even just a plain old Int or Long.

Conclusion

So far we've been removing one optimization at a time and seeing what happens. But what we haven't done is taken a step back and considered what the aggregate affect of all the optimizations is! The combined result of these 6 optimizations:

Can be summarized in one table:

Baseline No Bit Packing Ratio
(Optimized) (Unoptimized)
Parsing 29,267 3,773 ~7.6
Rendering 35,001 3,766 ~9.3
Concat 249,353 253,105 ~1.0
Splitting 539,879 54,804 ~9.9
Substring 2,077,567 163,447 ~12.7
Overlay 630,863 16,631 ~37.9
Memory 7,200kb 45,600kb ~1/6.3

As you can see, the combination of micro-optimizations makes the common operations in the Fansi library anywhere from ~7.6x to ~37.9x (!) times faster, and have made it take ~6.3x less memory to store its data-structures. The only benchmark that hasn't changed is the Concat benchmark of the ++ operation: I guess Array#++ is already reasonably efficient and there's no speed-up to be had.

Although here we worked backwards from already-optimized code to demonstrate the gains, these are exactly the same gains to be had if you had started from un-optimized code and worked forwards, using a profiler to guide you as described in Methodology. These are non trivial performance gains to be had; but are they worth the cost?

Is it Worth It?

This is a question everyone asks: is it worth putting in the effort to micro-optimize something and mess up the code a little, in exchange for the performance gain?

It's a reasonable question to ask, and the answer depends on what sort of code it is:

What is "Fast Enough"?

For example, if we consider a 10x as the approximate speedup for Fansi's operations, that means:

In these cases, you probably do not care unless you are doing high-frequency trading or rendering 60-frames-per-second video games.

This starts becoming significant if you are running it over and over, e.g. as part of a script that's called many times or a webserver that's taking many requests.

To a user, that's something turning from "instant" to "noticeable lag".

That's something turning from "noticeable lag" to "annoying delay".

And so on!

If our code is taking 0.1ms out of a batch process that takes 10 minutes to run, it's certainly not worth bothering to optimize. If it's taking 9 minutes out of the 10 minutes a process takes to run, it's more likely to be worth it.

If it's taking 300ms out of the 600ms that our webserver takes to generate a response, is it worth it then? As always it depends: how much does your response time matter? If you think speeding it up from 600ms to 300ms will increase profits, then by all means. If it's some internal webpage that someone looks at once every-other week, then maybe not.

In general, even when performance is "fast enough", you an often benefit from parts of your code having higher performance: if you don't need the speed, you can often trade off speed against convenience. "Fast enough" could mean "fast enough, if you're careful", but with extra performance it could be "fast enough, no need to care at all" and save you some headache.

Do you need to design your application to avoid doing redundant work? Do you think about re-computing things unnecessarily, or computing things and then throwing them away? If your library is "fast enough, if you're careful" then you'll need to think about those things. If you're library is "fast enough, no need to care at all", perhaps your first-pass of redundant, inefficient code with tons of throwaway work is totally acceptable!

How often is it modified?

Apart from making the code faster, the micro-optimizations described above have also made it less idiomatic, more verbose, and also harder to extend. For example, storing our Str.State in a bit-packed Int rather than a Map[Category, Attr] makes it blazing fast, but it also means that:

That is definitely a loss of flexibility and extensibility. Is that acceptable? In the case of Fansi, it probably is: the Ansi color codes haven't changed much for decades and are unlikely to start changing quickly now. On the other hand, if you are writing a business application and the business rules are changing constantly, then this loss of flexibility is more painful and may not be worth it.

What are the alternatives?

One consideration is that these sorts of micro-optimizations are often "easy" to apply. You do not need to re-architect your application, implement a persistent caching layer, design a novel algorithm, or make use of multiple cores for parallelism. These changes can often be made entirely local to a small piece of code, leaving the rest of your codebase untouched.

While we claim above that micro-optimizations result in "less idiomatic", "more verbose", "harder to extend" or "less maintainable" code, there is a flip side to it: if you need to implement persistent caching, design novel algorithms, or start multi-threading your code for performance, that could easily add far more complexity and un-maintainability than a few localized micro-optimizations.

If you're finding your code compute-bound and you're considering these sorts of approaches in order to make it run faster, it's worth considering whether you can achieve the same speedups using a few System.arraycopys and converting some Maps/Sets to Tries/Bitsets. Maybe you can't, but if you can, it could be a quick win and may well be enough!


A typical library or application likely won't see the same kind of speedups that Fansi did for so little work: often the time spent is spread over much more code and not concentrated in a few loops in a tiny codebase, like the Fansi benchmarks were.

Nevertheless, sometimes you find your code is spending a significant amount of time in one section, and you want it to spend less. These tools, and others like them, can be used to make it run faster:

While these techniques are often looked down upon in programming circles - with attitudes ranging from "the computer is fast enough" to "the JIT compiler will take care of it" - hopefully this post demonstrates that they still can have a powerful effect, and deserve a place in your programmer's toolbox.

What are your favorite micro-optimization tricks you've used in Scala or other languages? Let everyone know in the comments below!


About the Author: Haoyi is a software engineer, and the author of many open-source Scala tools such as the Ammonite REPL and the Mill Build Tool. If you enjoyed the contents on this blog, you may also enjoy Haoyi's book Hands-on Scala Programming


Strategic Scala Style: Practical Type SafetyStrategic Scala Style: Designing Datatypes

Updated 2016-05-30 2016-05-30 2016-05-30
